AYN-SIVVD7.8_TB20WO-E
short description:
PRODUCT NAME： Snap In Vent Valve
PRODUCT MODEL ：AYN-SIVVD7.8_TB20WO-E

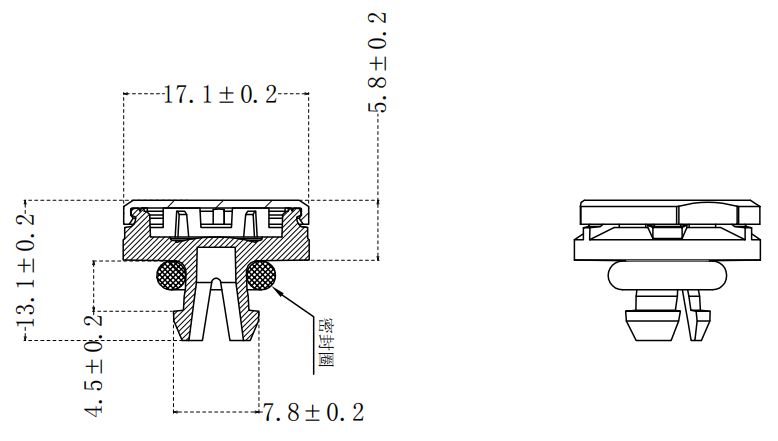

PRODUCT DIAGRAM ：
MEMBRANE MODEL ：AYN-TB20WO-E
|
PHYSICAL PROPERTIES |
REFERED TEST STANDARD |
UNIT |
TYPICAL DATA |
| Valve Color |
/ |
/ |
Black |
| Valve Material |
/ |
/ |
PC |
| Seal ring Color |
/ |
/ |
Black |
| Seal ring Material |
/ |
/ |
Silicone Rubber |
| Membrane Construction |
/ |
/ |
PTFE/PET non-woven |
| Membrane Surface Property |
/ |
/ |
Hydrophobic & Oleophobic |
| Typical Air Flow Rate |
ASTM D737 |
ml/min @ 7KPa |
1200 |
| Water Entry Pressure |
ASTM D751
|
KPa dwell 30 sec |
≥70 |
| IP Grade |
IEC 60529 |
/ |
IP67/IP68 |
| Moisture Vapor Transmission |
ASTM E96 |
g/m2/24h |
>5000 |
| Service Temperature |
IEC 60068-2-14 |
℃ |
-40℃~150℃ |
| ROHS |
IEC 62321 |
/ |
Meet ROHS Requirements |
| PFOA & PFOS |
US EPA 3550C & US EPA 8321B |
/ |
PFOA & PFOS Free |
|

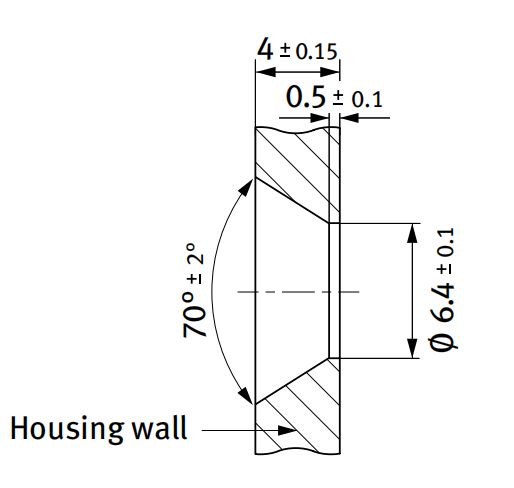

Recommended Installation Dimensions |
 |
AYN® Snap-In Breathable Valve effectively equalize pressure and reduce condensation in sealed enclosures, while keeping out solid and liquid contaminants. AYN® Snap-In Vent Valve is used to protect Automotive sensitive control units, sensors/actuators, motors and hybrid/electric component.
Shelf life is 5 years from the date of receipt for this product as long as this product is stored in its original packaging in an environment below 80°F (27°C) and 60% RH.
All data above are typical data for the membrane raw material, for reference only, and should not be used as special data for outgoing quality control.
All technical information and advice given here is based on Aynuo’s previous experiences and test results. Aynuo gives this information to the best of its knowledge, but assumes no legal responsibility. Customers are asked to check the suitability and usability in the specific application, since the performance of the product can only be judged when all necessary operating data are available.
