100GO20 Acoustic Vents Membrane for Portable Electronics
| PHYSICAL PROPERTIES
|
REFERED TEST STANDARD
|
UNIT
|
TYPICAL DATA
|
| Membrane Color
|
/ |
/ |
Grey
|
| Membrane Construction
|
/ |
/ |
ePTFE
|
| Membrane Surface Property
|
/ |
/ |
Hydrophobic
|
| Thickness
|
ISO 534 | mm | 0.01 |
| Air Permeability | ASTM D737
|
ml/min/cm2@7KPa | >8000 |
| Water Entry Pressure | ASTM D751
|
KPa for 30 sec | >40 KPa
|
| Transmission Loss (@1kHz, I.D.= 2.0mm) |
Internal Control
|
dB | < 1 dB |
| IP Rating (Test I.D.= 2.0mm) |
IEC 60529 | / | IP67/IP68
|
| ISO Rating (Test I.D.= 2.0mm) |
ISO 22810 | / | NA
|
| Operation Temperature
|
IEC 60068-2-14 | C | -40C ~ 260C |
| ROHS
|
IEC 62321 | / | Meet ROHS Requirements
|
| PFOA & PFOS
|
US EPA 3550C & US EPA 8321B | / | PFOA & PFOS Free
|

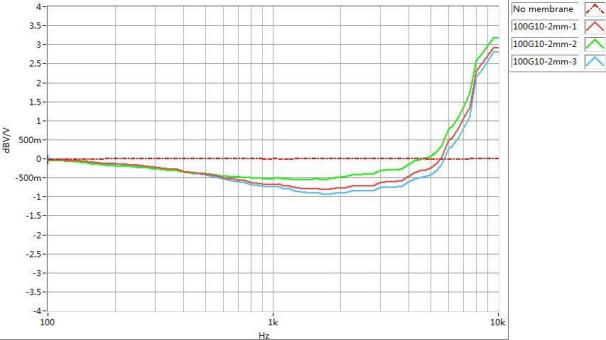

Transmission Loss of AYN-100G10 acoustics membrane < 1dB @ 1KHz, and < 3.5 dB in the whole frequency range. AYN-100G10
NOTE:
(1) Acoustic Response and IP Grade test part dimension: I.D. 2.0 mm / O.D. 6.0 mm.
(2) The results are tested using a typical digital output MEMS microphone system and self-designed test device in AYNUO laboratory
with representative sample size. The design of the device will affect final performance.
This series of membranes could be used in Automotive Lamps, Automotive Sensitive Electronics, Outdoor Lighting, Outdoor Electronic Devices, Household Electrical and Electronics etc.
The membrane can balance inside/outside pressure differentials of sealed enclosures while blocking contaminants, which could increase components’ reliability and extend their service life.
Shelf life is five years from the date of receipt for this product as long as this product is stored in its original packaging in an environment below 80° F (27°C) and 60% RH.
All data above are typical data for the membrane raw material, for reference only, and should not be used as special data foroutgoing quality control.
All technical information and advice given here is based on Aynuo’s previous experiences and test results. Aynuo gives this information to the best of its knowledge, but assumes no legal responsibility. Customers are asked to check the suitability and usability in the specific application, since the performance of the product can only be judged when all necessary operating data are available.
